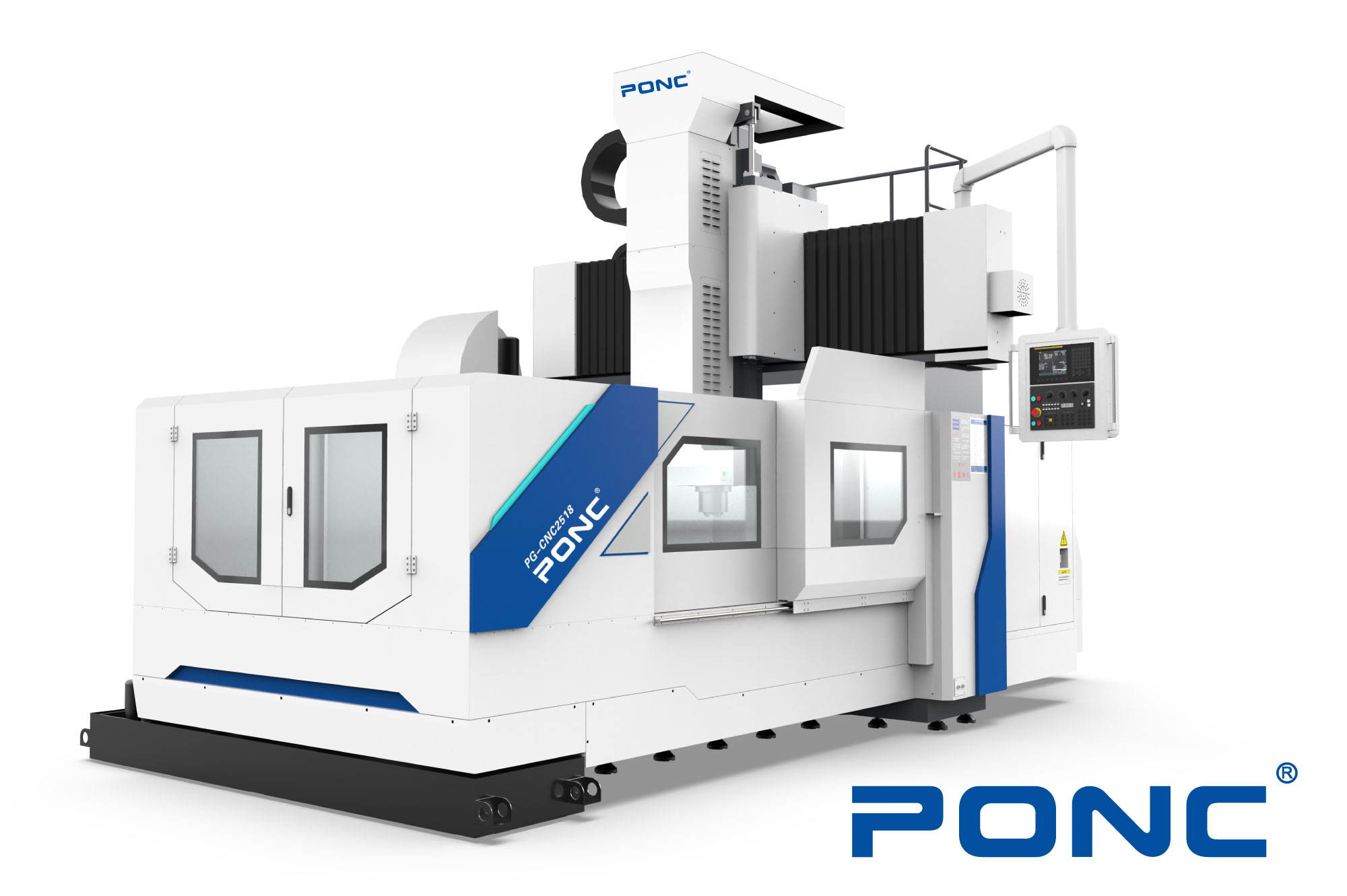

PG Series | Bridge-Type 3-Axis Bridge Type Milling Machine Center
PONC PG Series Bridge-Type CNC Machining Centers feature high speed and high precision with Taiwan brand 3-axis linear guideway.
Used in aviation, shipbuilding, power generation, military industry, heavy machinery, locomotives, machine tools, textile machinery, printing machinery, mold manufacturing and other industries.
- Fanuc OIMF+ and Mitsubishi M80 control units.
- 4th and 5th Axis preparation.
- It is integrated with drilling, boring, milling, expanding, reaming, rigid tapping, linear interpolation, circular interpolation, helical interpolation and three-coordinate linkage functions.
-
The table and bench are made of high strength and quality cast iron, resin sand molded.
-
First-Class Digital Control System with High Processing Stability:
TECHNICAL SPECIFICATIONS
| Öğeler | Birim | PG-CNC1614 | PG-CNC2016 | PG-CNC2518 | PG-CNC3220 | |
Eksen Hareketleri | X ekseni | mm | 1600 | 2000 | 2500 | 3200 |
| Y ekseni | mm | 1500 | 1650 | 1800 | 2000 | |
| Z ekseni | mm | 800 | 800 | 1000 | 1000 | |
| Mil burnundan tabla yüzeyine kadar olan mesafe | mm | 150-950(BT50) | 250-1050(BT50) | 150-1150(BT50) | 260-1260(BT50) | |
Tabla Ölçüleri |
Boyut (Uzunluk * Genişlik) | mm | 1200×1700 | 1300×2000 | 1600×2500 | 1800×3000 |
| Maks. yük | T | 2.5 | 4 | 6.5 | 7 | |
| T yuvası (Sayı/Genişlik/Merkez mesafesi) | mm | 7/22-170 | 7/22-170 | 9/22-180 | 9/22-190 | |
|
İş Mili | Tip | / | Mekanik | |||
| Güç | kW | 15(S1)/18,5(S3/S6-25%) | ||||
| Max hız | devir/dakika | 6000 | ||||
| Konik | / | BT50 | ||||
| İlerleme Hızları | X/Y/Z’de hızlı | m/dak | 15/15/12 | |||
| X/Y/Z Kesme İlerleme Hızı | m/dak | 10/10/8 | ||||
| Takım Magazini | Tip | / | Disk tipi | |||
| Gerekli pnömatik basınç | kg/cm² | 6 | ||||
Makine Boyutu |
Makine Yüksekliği | mm | 3700 | 3920 | 4000 | 4100 |
| Kaplama Alanı | mm | 5800×3200 | 6400×3800 | 7300×3900 | 8600×4000 | |
| Makina ağırlığı | T | 13.5 | 19 | yirmi bir | yirmiüç | |
TECHNICAL DATA
| Items | Unit | PG-CNC1614 | PG-CNC2016 | PG-CNC2518 | PG-CNC3220 | |
| Travel | X-axis | mm | 1600 | 2000 | 2500 | 3200 |
| Y-axis | mm | 1500 | 1650 | 1800 | 2000 | |
| Z-axis | mm | 800 | 800 | 1000 | 1000 | |
| Distance from spindle nose to table surface | mm | 150-950(BT50) | 250-1050(BT50) | 150-1150(BT50) | 260-1260(BT50) | |
| Worktable | Size (Length*Width) | mm | 1200×1700 | 1300×2000 | 1600×2500 | 1800×3000 |
| Max. load | t | 2.5 | 4 | 6.5 | 7 | |
| T-slot (Number/Width/Center distance) | mm | 7/22-170 | 7/22-170 | 9/22-180 | 9/22-190 | |
| Spindle | Type | / | Mechanical | |||
| Power | kW | 15(S1)/18.5(S3/S6-25%) | ||||
| Max. speed | rpm | 6000 | ||||
| Taper | / | BT50 | ||||
| Feedrates | Rapid on X/Y/Z | m/min | 15/15/12 | |||
| X/Y/Z Cutting Feed Rate | m/min | 10/10/8 | ||||
| Tool Magazine | Type | / | Disc type | |||
| Required pneumatic pressure | kg/cm² | 6 | ||||
| Dimension | Machine Height | mm | 3700 | 3920 | 4000 | 4100 |
| Covering Area | mm | 5800×3200 | 6400×3800 | 7300×3900 | 8600×4000 | |
| Machine Weight | t | 13.5 | 19 | twenty one | twenty three | |
