PL Series | CNC Vertical Machining Center

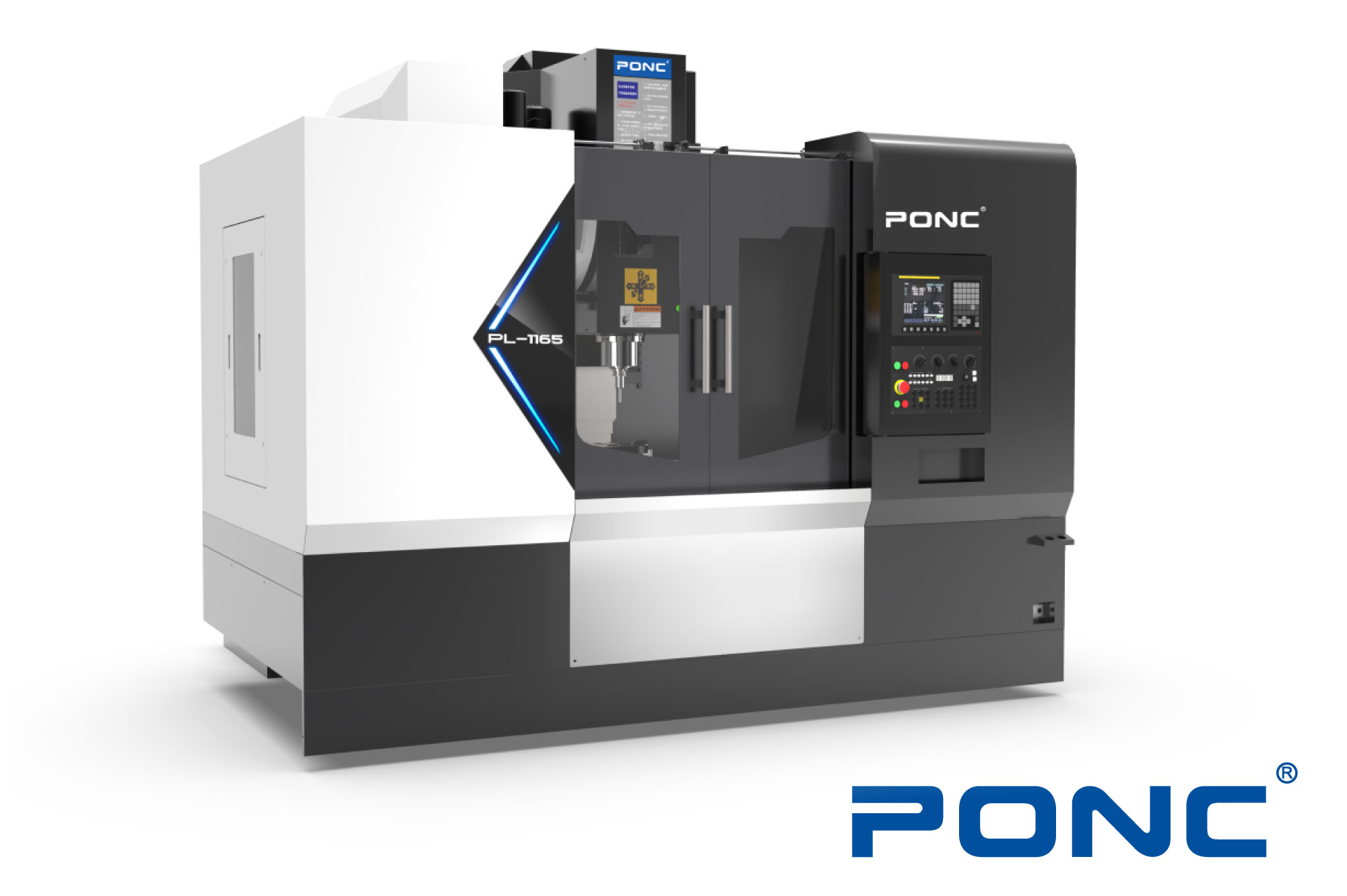

PONC PL Series 3 Axis CNC Vertical Machining Centers feature high speed and high precision with Taiwan brand 3 axis linear guideway.
The three axes adopt Taiwan/Japan P class 45# precision roller guide rail to ensure the processing rigidity of the machine.
PONC PL Series 3 Axis CNC Vertical Machining Centers; Can be used in aviation, automobile parts, railway transportation industry, machinery and mold manufacturing fields; suitable for high-precision and efficient automatic processing of milling, drilling, tapping and hole drilling of small and medium-sized parts.
- Fanuc OIMF+ and Mitsubishi M80 control units.
- 4th and 5th Axis preparation.
-
Premium Components for High Precision:
• The control system uses Fanuc/Mitsubishi.
• It can meet complex machining requirements, performing automatic and continuous milling, drilling, reaming, and tapping operations in a single clamp.
• The triaxial bearing adopts the P4 class from Japan's NSK/NACHI.
• The triaxial ball screw adopts the C3 class from Taiwan's HIWIN.
• The main electrical components adopt the French Schneider.
-
BT40 Spindle Delivers High-Precision, High-Speed Machining: The 12,000-rpm spindle features a large-size motor and is driven by a direct-drive servo motor. It is robust and reliable for high-speed milling or drilling. Its constant-temperature design features an independent water jet, low temperature rise, minimal thermal deformation, and stable machining performance, effectively extending tool life.
-
2-Second High-Speed Tool Change: 2-second tool change time reduces downtime and increases machining efficiency. The disc-type tool magazine can store 24 tools, providing excellent flexibility in operation.
TECHNICAL SPECIFICATIONS
| Öğeler | Birim | PL855 | PL1165 | PL1375 | |
Eksen Hareketleri | X ekseni | mm | 800 | 1100 | 1300 |
| Y ekseni | mm | 550 | 650 | 750 | |
| Z ekseni | mm | 550 | 600 | 600 | |
| Milden tabla yüzeyine olan mesafe | mm | 120-670 | 120-720 | 120-720 | |
Tabla Ölçüleri | Boyut (Uzunluk*Genişlik) | mm | 1000×550 | 1200×600 | 1300×700 |
| Maks. yük | Kg/m² | 500 | 700 | 800 | |
| T Yuvaları (Sayı/Genişlik/Merkez Mesafesi) | mm | 5-*18T*90 | 5-*18T*100 | 7-*18T*100 | |
İş Mili | Tip | / | Mekanik | Mekanik | Mekanik |
| Güç (S1/S6) | kW | 7,5/15 | 11/18,5 | 11/18,5 | |
| Tork (S1/S6) | nm | 35,5/95,5 | 52,5/118 | 52,5/118 | |
| Maks. hız | devir/dakika | 12000 | 12000 | 12000 | |
| Koni | / | BT40/SK40/CAT40 | BT40/SK40/CAT40 | BT40/SK40/CAT40 | |
İlerleme Hızı | Hızlı X/Y/Z | m/dak | 48/48/48 | 36/36/36 | 36/36/36 |
| Kesme hızı X/Y/Z | m/dak | 1~10000 | |||
Takım Magazini | Tip | / | Disk tipi | ||
| Kapasite | PC. | 24 | |||
| Takım değiştirme süresi | saniye | 2 | |||
Makine Boyutu | Makine yüksekliği | mm | 2600 | 2700 | 3000 |
| Kapsama alanı | mm | 2800*2600 | 2980*3120 | 3340*3160 | |
| Makina ağırlığı | kilogram | 5500 | 7000 | 7500 | |
