PB85 Series | CNC Profile Machining Center

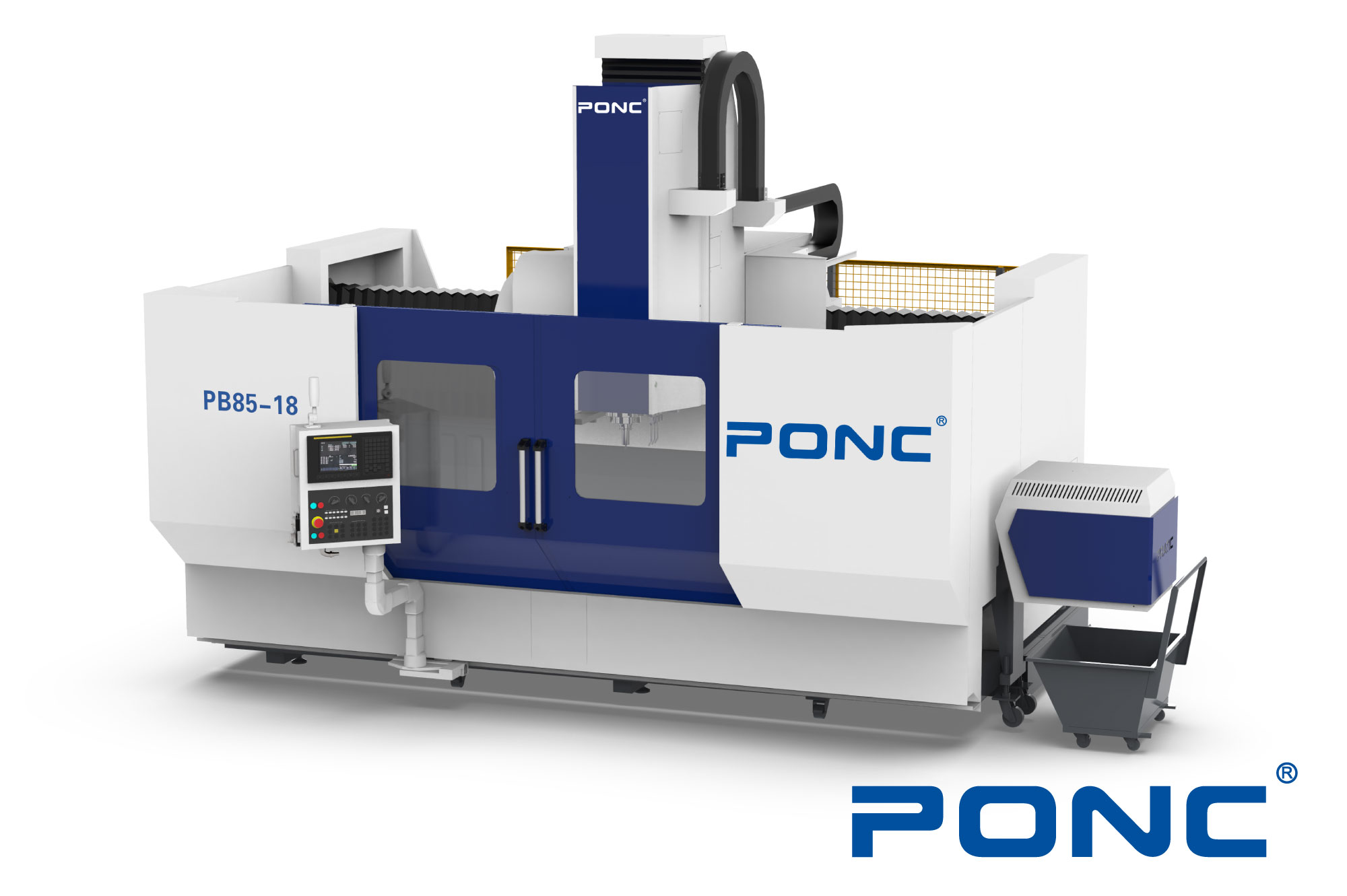

Offering more precise machining with 3-axis ball screw movement, PONC PB Series Profile Machining Centers are at RS CNC!
- PB8518 and PB8525 models allow for more precise work thanks to the 3-axis ball screw movement.
- The chip discharge slots are designed more vertically, ensuring both rapid chip discharge and a compact machine.
- It is mainly used in the processing of aluminum and steel profiles in industries such as automobile, railway transportation, machinery manufacturing, etc.
- 4th and 5th Axis preparation.
- Fanuc OIMF+ and Mitsubishi M80 control units.
- Since it is movable from the 3-axis head, it is suitable for multi-station use on the table.
- High Bed Structure: Adopt high bed structure, effectively prevent water particles splashing out of the equipment, and at the same time effectively protect the guide rail, screw and other important parts, improve the life and reliability of the equipment.
- Fully Enclosed Structure: The Y-axis full vertical guard can effectively prevent chips and cutting fluid generated during the cutting process from splashing into the machine. The design minimizes dead corners and obstacles in the cutting area, ensuring the smooth flow of chips and fluid, keeping the machining area clean and safe.
-
Front and Rear Dual-Station Fixtures: Extend the Y-axis travel, making the machine more suitable for various industries. It can be equipped with front and rear dual-station fixtures, which are especially suitable for machining large quantities of workpieces.
- Standard Triaxial Screw: The PB85-18 can be equipped with an optional triaxial screw to meet the needs of higher machining accuracy with rapid traverse speed up to 50 m/min, better dynamic performance, and higher acceleration.
TECHNICAL SPECIFICATIONS
| EKSEN HAREKETLERİ | PB85-18/25/45/65(döküm) | |
| X Ekseni | 1800/2500/4500/6500mm | |
| Y Ekseni | 850mm | |
| Z ekseni | 700 mm | |
| İŞ MİLİ | ||
| Mil hızı | 12000 rpm | |
| Mil konikliği | BT40/SK40/CAT40 | |
| MAGAZİN | ||
| Tip | Disk tipi | |
| Takım magazininin maksimum cepleri | 24 adet | |
| Maksimum takım çapı (tam bitişik cepler) uzunluk/ağırlık | φ75mm/300mm/8 kg | |
| Takım değiştirme süresi (takımdan takıma) | 2 saniye | |
| EKSEN HIZLARI | ||
| X’te hızlı | 50 m/dak | |
| Y/Z’de hızlı | 36/36 m/dak | |
| X/Y/Z Kesme ilerleme hızı | 15000 mm/dak | |
| CNC SİSTEMİ | FANUC | SIEMENS |
| MOTOR GÜCÜ | ||
| Mil gücü | 11/18,5 kW | 11/23,2 kW |
| X/Y/Z Ekseni Tahrik motoru | 3,0/3,0/3,0 kW | 5,5/3,5/5,5 kW |
| YAĞLAMA VE SOĞUTMA SİSTEMİ | ||
| Yağlama sistemi | Otomatik | |
| Soğutma sistemi | Su soğutma | |
| HASSASİYET | ||
| X Ekseni Konumlandırma doğruluğu | 0,02 mm | |
| Y/Z Ekseni Konumlandırma doğruluğu | 0,015mm | |
| X/Y/Z Ekseni Tekrarlanabilirlik doğruluğu | 0,01 mm | |
| MEKANİK ÖZELLİKLER | ||
| Gerekli pnömatik basınç | 6 kg/cm² | |
| Makine yüksekliği | 3800mm | |
| Zemin alanı | 4100/4900/6900/9000×4100 mm | |
| Makina ağırlığı | 6,7/8,7/10,7/12 ,7t | |
TECHNICAL DATA
| TRAVELS | PB85-18/25/45/65（casting） | |
| X-Axis | 1800/2500/4500/6500 mm | |
| Y-Axis | 850 mm | |
| Z-Axis | 700 mm | |
| SPINDLE | ||
| Spindle speed | 12000 rpm | |
| Spindle taper | BT40/SK40/CAT40 | |
| TOOL MAGAZINE | ||
| Type | Disc type | |
| Max.pockets of tool magazine | 24 pcs | |
| Max.tool diameter(full adjacent pockets) length/weight | φ75mm/300mm/8 kg | |
| Tool change time (tool to tool) | 2 sec | |
| AXIS FEED RATES | ||
| Rapid on X | 50 m/min | |
| Rapid on Y/Z | 36/36 m/min | |
| X/Y/Z Cutting feed rate | 15000 mm/min | |
| CNC SYSTEM | FANUC | SIEMENS |
| MOTOR POWER | ||
| Spindle power | 11/18.5 kW | 11/23.2 kW |
| X/Y/Z-Axis Drive motor | 3.0/3.0/3.0 kW | 5.5/3.5/5.5 kW |
| LUBRICATION AND COOLING SYSTEM | ||
| Lubrication system | Automatic | |
| Coolant system | Water cooling | |
| ACCURACY | ||
| X-Axis Positioning accuracy | 0.02 mm | |
| Y/Z-Axis Positioning accuracy | 0.015 mm | |
| X/Y/Z-Axis Repeatability accuracy | 0.01 mm | |
| MECHANICAL SPECIFICATION | ||
| Required pneumatic pressure | 6 kg/cm² | |
| Machine height | 3800 mm | |
| Floor area | 4100/4900/6900/9000×4100 mm | |
| Machine weight | 6.7/8.7/10.7/12 .7t | |
