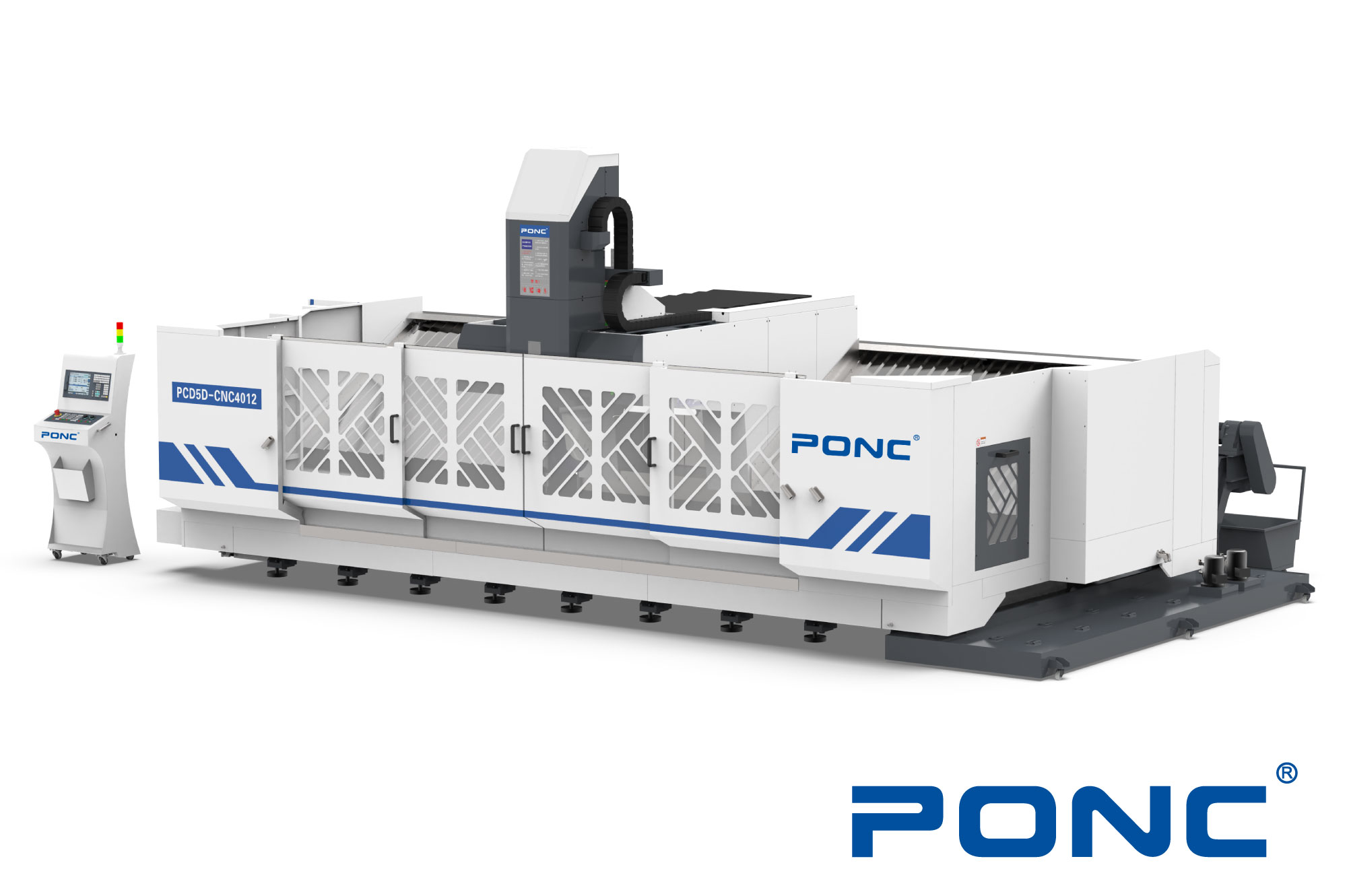

PCD5D Series | 5 Axis Aluminum
CNC Profile Machining Center
PONC PCD5D model CNC aluminum profile machining center is widely used in the automotive industry, machinery manufacturing and other aluminum processing needs, as well as processing multi-angle and special-shaped parts.
SIEMENS and HEIDENHAIN control units are used for the PCD5D series.
It has full high accuracy 5-axis machining capacity with its precision PONC B/C head.
It is suitable for processing profiles of various lengths such as aluminum and copper.
Automatic chip conveyor is the standard configuration, which facilitates chip removal.
-
Advanced 5-Axis Simultaneous Machining to Meet Multi-Angle, Multi-Directional Machining Needs: Powerful 5-axis machining is built to meet special-shaped, multi-directional machining; provides ±185° continuous rotation on the B-axis and ±320° continuous rotation on the C-axis.
-
High-Performance and High-Speed Electrospindle Enables Machining of Heavy Workpieces: Equipped with an HSK-A63 tool holder, the 24,000 rpm high-speed electrospindle with stable dynamic balance enables machining with the best results in terms of accuracy, even in heavy work.
-
Premium Digital Control System with High Process Stability:
* Siemens SINUMERIK 840D 5-axis system.
* Powerful functions and full-level data transfer.
* Modular and open architecture design with high scalability.
* Handles virtually all machining applications.
-
Cast Iron Bed with Strong Shock Absorption Capacity and High Physical Stability: The worktable and machine bed are molded from one piece of cast iron, undergoing excellent heat treatment process to eliminate residual stress, with sufficient reinforcement plates and three rows of support legs to ensure gravity rigidity.
-
Double-Arm Moving Column Structure Ensures High Rigidity and Precision: The concentrated double-arm column structure provides outstanding stability for the entire machine tool by dispersing extra mechanical force from the spindle gantry and reducing the effects of vibration when the machine is in high-speed machining.
TECHNICAL SPECIFICATIONS
| Öğeler | Birim | PCD5D-CNC4012 | PCD5D-CNC6012 | |
| Eksen Hareketleri | X ekseni | mm | 4000 | 6000 |
| Y ekseni | mm | 1200 (3 eksen)/700 (4 eksen) | ||
| Z ekseni | mm | 500 | ||
| B ekseni | / | ±185° | ||
| C ekseni | / | ±320° | ||
| Tabla Ölçüleri | Boyut (Uzunluk*Genişlik) | mm | 4000×1200 | 6000×1200 |
| Azami yük | kg/ m2 | 3800 | ||
| T yuvası (Sayı/Genişlik/Merkez mesafesi) | mm | 6/18/200 | ||
|
İş Mili | Tip | / | Motorlu | |
| Güç(S1/S6) | kW | 15/18 | ||
| Maks. hız | devir/dakika | 24000 | ||
| Konik | / | HSK-A63 | ||
| İlerleme Hızları | X/Y/Z’de hızlı | m/dak | 40/30/20 | |
| X/Y/Z Kesme İlerleme Hızı | m/dak | 15 | ||
| Magazin | Tip | / | Bambu şapka türü | |
| Kapasite | adet | 20 | ||
| Aletten alete zaman | saniye | 6 | ||
| Makine Boyutları | Makine Yüksekliği | mm | 3600 | |
| Kaplama Alanı | mm | 9300*3500 | 11300*3500 | |
| Makina ağırlığı | kilogram | 22000 | 24000 | |
TECHNICAL DATA
| Items | Unit | PCD5D-CNC4012 | PCD5D-CNC6012 | |
| Travel | X-axis | mm | 4000 | 6000 |
| Y-axis | mm | 1200 (3-axis)/700 (4-axis) | ||
| Z-axis | mm | 500 | ||
| B-axis | / | ±185° | ||
| C-axis | / | ±320° | ||
| Worktable | Size (Length*Width) | mm | 4000×1200 | 6000×1200 |
| Max.load | kg/m2 | 3800 | ||
| T-slot (Number/Width/Center distance) | mm | 6/18/200 | ||
| Spindle | Type | / | Motorized | |
| Power(S1/S6) | kW | 15/18 | ||
| Max. speed | rpm | 24000 | ||
| Taper | / | HSK-A63 | ||
| Feed rates | Rapid on X/Y/Z | m/min | 40/30/20 | |
| X/Y/Z Cutting Feed Rate | m/min | 15 | ||
| Tool Magazine | Type | / | Bamboo hat type | |
| Capacity | pcs. | 20 | ||
| Tool-to-tool time | sec | 6 | ||
| Dimension | Machine Height | mm | 3600 | |
| Covering Area | mm | 9300*3500 | 11300*3500 | |
| Machine Weight | kg | 22000 | 24000 | |
