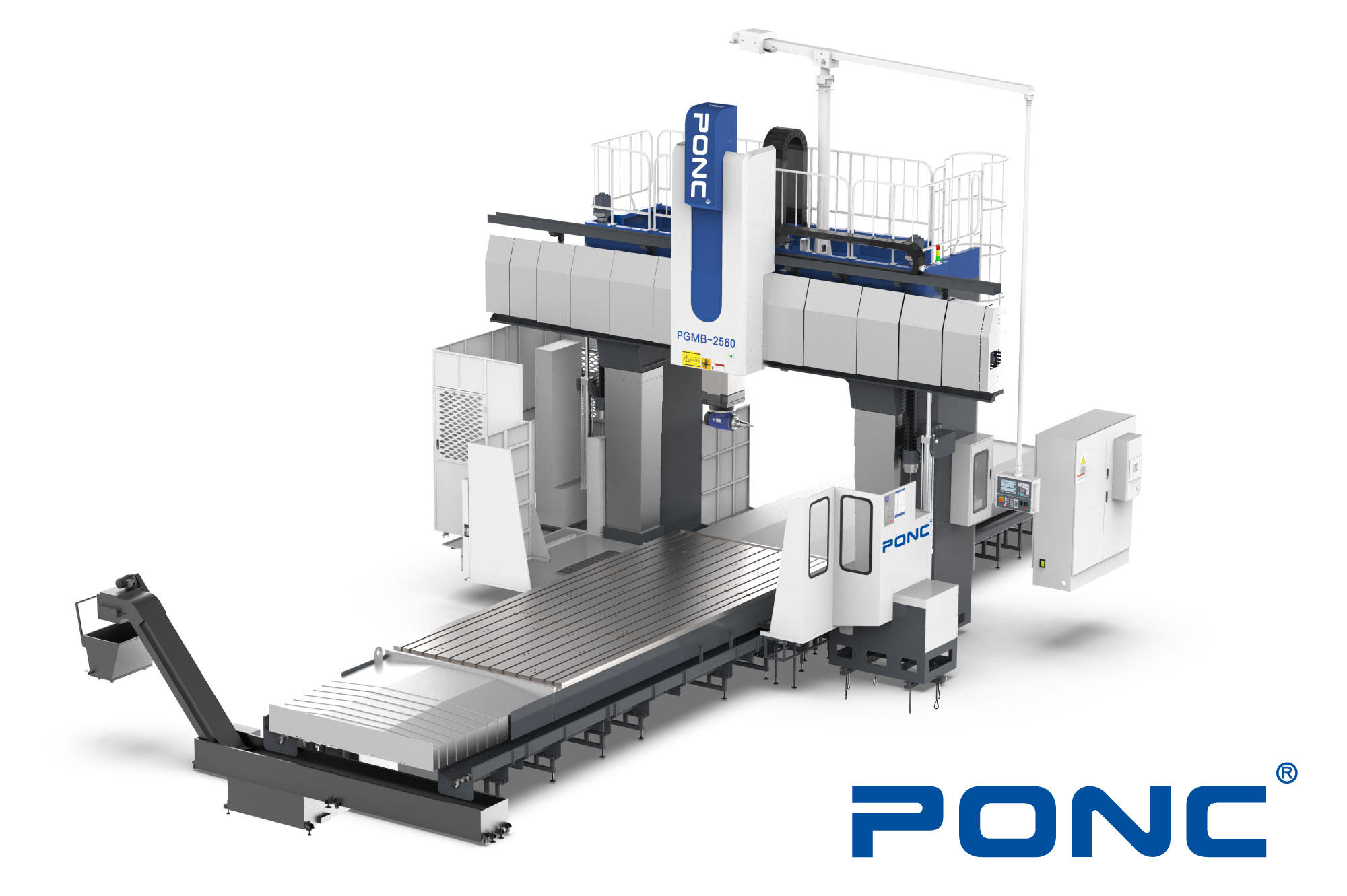

PGMB Series | Bridge-Type CNC Machining Center
PONC PGMB Series Bridge Type CNC Machining Centers are used in defense industry, aerospace, shipbuilding, energy generation, heavy machinery production, locomotives, machine tools, textile machinery, printing machines, mold manufacturing and other industries.
- X-axis 4-way large linear guideways.
- Z Axis 450×450 mm ram box slide.
- Z Axis dual motor with gearbox and dual ball screw movement.
- Optional 2.5 degree indexed automatic detachable angle head.
- 4th and 5th Axis preparation.
- Fanuc OIMF + Mitsubishi M80 and Siemens control units.
- It provides stability and precision in deep operations thanks to the W axis movement in addition to the Z axis movement.
- It also provides high part processing capabilities.
-
Movable Worktable Walking Beam Design: The worktable is movable (X-axis), the spindle moves along the beam (Y-axis), and the ram moves up and down (Z-axis), the beam moves up and down along the column (W-axis).
-
Wide Working Area for Ultra-High-Precision and Rigidity Workpieces: The moving beam can effectively increase the machining range and facilitate the machining of ultra-high-height workpieces. The strokes of the moving beam and the ram can be overlapped, ensuring that spindle accuracy is not affected by the spindle extending too far.
-
Excellent for Heavy Duty and Hard Machining:
-
Beam with Dense Stiffening Structure Has Good Bending Strength and Shear Strength: The dense reinforcement structure obtained by using finite element analysis is adopted in the beam, which is not easily deformed and increases the rigidity.
-
High Strength Shaft Unit:
-
High Response Time Achieved Thanks to Z-Axis Dual Servo Drive:
The Z-axis dual servo drives at the Center of Gravity, balancing the forces (F) on both sides and eliminating the rotation torque generated during driving. High responsiveness and synchronization are achieved during acceleration, thus achieving stable machining accuracy.
-
First-Class Digital Control System with High Process Stability:
TECHNICAL SPECIFICATIONS
| Öğeler | Birim | PGMB3040 | PGMB3060 | PGMB3080 | |
Eksen Hareketleri |
X ekseni | mm | 4200 | 6200 | 8500 |
| Y ekseni | mm | 4500 | |||
| Z ekseni | mm | 1200 | |||
| W ekseni | mm | 1300 | |||
| İş mili ucundan çalışma masasına | mm | 0~2350 | |||
| İki sütun mesafesi | mm | 3700 | |||
Tabla Ölçüleri |
Boyut | mm | 3000*4000 | 3000*6000 | 3000*8000 |
| Maks. yük | T | 24 | 36 | 48 | |
| Genişlik/Mesafe/T yuvalarının sayısı | mm | 28-200-13 | |||
|
İş Mili | Tip | / | Mekanik | ||
| Güç | kW | 22/33（S1/S6-40%） | |||
| Hız | devir/dakika | 10~4500 | |||
| Tork | nm | 1076/1614（S1/S6-40%） | |||
| Konik | / | BT50 | |||
| Kare koç | mm | 400*400 | |||
| İlerleme Hızları | X/Y/Z/W’de hızlı | m/dak | 10/15/10/3 | ||
| X/Y/Z/W Kesme İlerleme Hızı | m/dak | 6/6/6 | |||
| Makine Boyutu | Makine Yüksekliği | mm | 8000 | ||
| Makine Genişliği | mm | 9000 | 8500 | 8500 | |
| Makine Uzunluğu | mm | 12000 | 16000 | 20000 | |
| Makina ağırlığı | T | 80 | 90 | 100 | |
TECHNICAL DATA
| Items | Unit | PGMB3040 | PGMB3060 | PGMB3080 | |
| Travel | X-axis | mm | 4200 | 6200 | 8500 |
| Y-axis | mm | 4500 | |||
| Z-axis | mm | 1200 | |||
| W-axis | mm | 1300 | |||
| From spindle end to worktable | mm | 0~2350 | |||
| Distance of two columns | mm | 3700 | |||
| Worktable | Size | mm | 3000*4000 | 3000*6000 | 3000*8000 |
| Max. load | t | 24 | 36 | 48 | |
| Width/Distance/Number of T-slots | mm | 28-200-13 | |||
| Spindle unit | Type | / | Mechanical | ||
| Power | kW | 22/33（S1/S6-40%） | |||
| Speed | rpm | 10~4500 | |||
| Torque | Nm | 1076/1614（S1/S6-40%） | |||
| Taper | / | BT50 | |||
| Square ram | mm | 400*400 | |||
| Feedrates | Rapid on X/Y/Z/W | m/min | 10/15/10/3 | ||
| X/Y/Z/W Cutting Feed Rate | m/min | 6/6/6 | |||
| Dimension | Machine Height | mm | 8000 | ||
| Machine Width | mm | 9000 | 8500 | 8500 | |
| Machine Length | mm | 12000 | 16000 | 20000 | |
| Machine Weight | t | 80 | 90 | 100 | |
