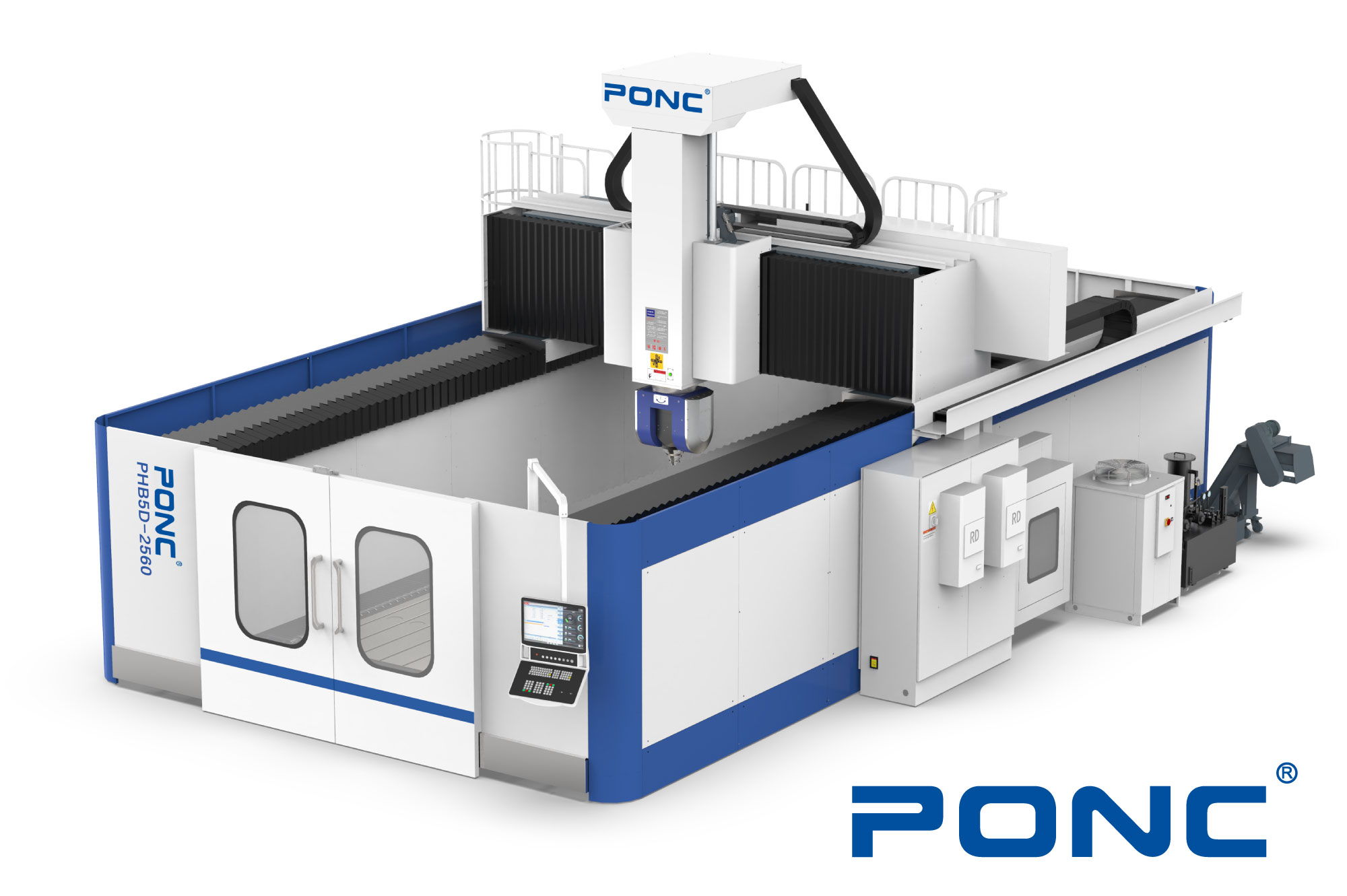

PHB5D Series | 5 Axis
CNC Gantry Machining Center
PONC PHB5D Series 5-Axis CNC Gantry Machining Centers are used in defense industry, aerospace, shipbuilding, power generation, heavy machinery manufacturing, locomotives, machine tools, textile machinery, printing machines, mold manufacturing and other industries.
This machine is a compact bridge type gantry machining center, all movement axes are on the left and right walls of the machine.
The worktable is stable, the weight of the workpiece does not affect the machining accuracy.
The bridge type design provides large processing area and high processing precision.
Precise 5-Axis Simultaneous operation from the head.
Z Axis 500×500 mm ram box slide. X Axis is moved by 4 servo motors, Y axis is moved by 2 servo motors, providing both precision and power.
-
High-Performance 5-Axis Joint Machining:
This high-performance 2-axis head, equipped with an HSK A63 high-speed motorized spindle, performs multi-directional and multi-angle machining to meet the high-smoothness machining requirements of a variety of special-shaped parts.
-
Optimized Structure Ensures High Equipment Performance:
The light weight of the moving parts enables high rotational feed rates, reduces the load on the lead screw and guide rail, reduces wear, and improves machining accuracy and extends machine life.
The bridge structure increases the rigidity of the load-bearing part of the machine tool, effectively preventing vibration that can occur when the beam moves rapidly and the spindle operates at high speeds.
The bilaterally symmetrical pyramidal bearing structure can provide high rigidity, high load-bearing capacity, and high stability.
The fixed worktable saves space and has a greater load-bearing capacity.
-
Integrated One-Piece Structure Used to Ensure Machine Strength:
The integrated work table, cast from high-strength, high-quality cast iron and resin-sand treated, is arranged in a 'box' structure that provides high strength and rigidity.
The integrated beam and gantry structure, constructed from high-strength, high-quality cast iron, features a compact design that ensures beam strength.
-
First-Class Digital Control System with High Processing Stability:
TECHNICAL SPECIFICATIONS
| Öğeler | Birim | PHB5D-2540/60/80 | PHB5D-3040/60/80 | |
| Eksen Hareketleri | X ekseni | mm | 4000/6500/8000 | |
| Y ekseni | mm | 2600 | 3100 | |
| Z ekseni | mm | 1250(1000/1500) | ||
| A ekseni | / | ±105° | ||
| C ekseni | / | ±360° | ||
| İş mili burnu masaya | mm | 0-1250 | ||
| Sütunlar arasındaki mesafe | mm | 3400 | 3900 | |
| Tabla Ölçüleri | Boyut | mm | 2500*4000/6000/8000 | 3000*4000/6000/8000 |
| Maks. yük | T/㎡ | 5 | ||
| T yuvalarının sayısı/mesafesi | / | 22; 250 | ||
| İş Mili | Tip | / | Motorlu | |
| Anma gücü | kW | 56/70(S1/S6) | ||
| Maks. hız | devir/dakika | 6000/18000 | ||
| Puanlanmıs tork | nm | 89/111 (S1/S6) | ||
| Konik | / | HSK A63 | ||
| Kare koç | mm | 500*500 | ||
| İlerleme Hızları | X/Y/Z’de hızlı | m/dak | 30/30/30 | |
| X/Y/Z Kesme İlerleme Hızı | m/dak | 15/15/15 | ||
| Makine Boyutları | Makine Yüksekliği | mm | 5550 | |
| Makine Genişliği | mm | 7500 | 8000 | |
| Makine Uzunluğu | mm | 8000/10200/12200 | ||
TECHNICAL DATA
| Items | Unit | PHB5D-2540/60/80 | PHB5D-3040/60/80 | |
| Travel | X-axis | mm | 4000/6500/8000 | |
| Y-axis | mm | 2600 | 3100 | |
| Z-axis | mm | 1250(1000/1500) | ||
| A-axis | / | ±105° | ||
| C-axis | / | ±360° | ||
| Spindle nose to table | mm | 0-1250 | ||
| Distance between columns | mm | 3400 | 3900 | |
| Worktable | Size | mm | 2500*4000/6000/8000 | 3000*4000/6000/8000 |
| Max. load | T/㎡ | 5 | ||
| Number/Distance of T-slots | / | 22; 250 | ||
| Spindle unit | Type | / | Motorized | |
| Rated power | kW | 56/70 (S1/S6) | ||
| Max. speed | rpm | 6000/18000 | ||
| Rated torque | Nm | 89/111 (S1/S6) | ||
| Taper | / | HSK A63 | ||
| Square ram | mm | 500*500 | ||
| Feedrates | Rapid on X/Y/Z | m/min | 30/30/30 | |
| X/Y/Z Cutting Feed Rate | m/min | 15/15/15 | ||
| Dimension | Machine Height | mm | 5550 | |
| Machine Width | mm | 7500 | 8000 | |
| Machine Length | mm | 8000/10200/12200 | ||
