PHE5D Series | 5 Axis CNC Gantry Machining Center

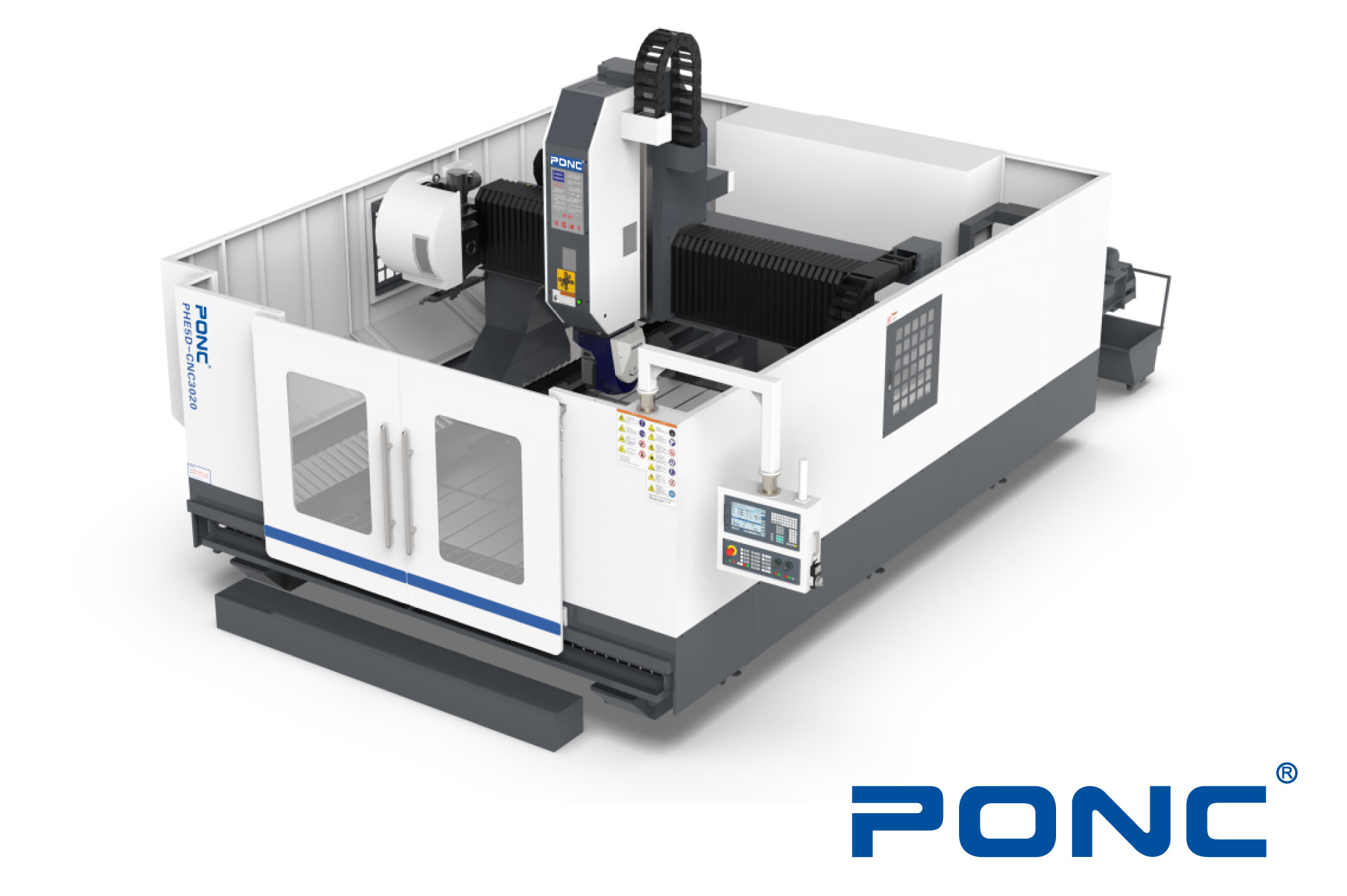

PONC PHE5D Series 5-Axis Bridge Moving Machining Center is widely used in aluminum processing industries such as electric vehicle battery holder, railway transportation, machinery parts and other fields.
- Siemens and Heidenhain control units.
- The lightweight body, suitable for aluminum processing, provides fast processing and rapid movement in idle.
- 6. Eksen hazırlığı.
-
High-Performance 5-Axis Joint Machining:
Equipped with a self-developed air conditioning head.
To meet the high-smoothness machining requirements of various specially shaped parts, the high-performance 2-axis head, capable of multi-directional and multi-angle machining, is equipped with an HSK A63 high-speed motorized spindle.
-
Latest Portal Structure Design with Superior Dynamic Performance and Higher Acceleration:
The integrated column and beam structure reduces the equipment's center of gravity, increasing overall rollover resistance and rigidity.
Combined with a wide processing area, it meets diverse customer needs.
-
First-Class Digital Control System with High Processing Stability:
-
Powerful Automatic Chip Removal: Double screw chip extractors and chain plate chip conveyor are equipped to provide powerful chip discharge capacity to ensure timely discharge of machining waste chips.
TECHNICAL SPECIFICATIONS
| Öğeler | Birim | PHE5D-CNC3020 | ||
|
Eksen Hareketleri | X ekseni | mm | 3000 | |
| Y ekseni | mm | 3 eksen: 1850 | ||
| 4 eksen: 1400 | ||||
| Z ekseni | mm | 530 | ||
| A ekseni | / | ±185° | ||
| C ekseni | / | ±320° | ||
| İş Mili | Tip | / | Motorlu | |
| Maks. hız | devir/dakika | 24000 | ||
| Konik | / | HSK A63 | ||
| İlerleme Hızları | 3 eksenli vida | Raf ve pinyon | ||
| X/Y/Z’de hızlı | m/dak | 42/48/48 | 60/60/48 | |
| X/Y/Z Kesme İlerleme Hızı | m/dak | 20 | 15 | |
|
Magazin | Tip | / | Şemsiye türü | |
| Kapasite | adet | 24 | ||
| Aletten alete zaman | saniye | 2 | ||
| Maks. takım çapları/uzunluğu/ağırlığı | φ80mm/280mm/8kg | |||
| Makine Boyutları | Makine Yüksekliği | mm | 3200 | |
| Kaplama Alanı | mm | 7100*4100 | ||
| Makina ağırlığı | T | 15 | ||
TECHNICAL DATA
| Items | Unit | PHE5D-CNC3020 | ||
| Travel | X-axis | mm | 3000 | |
| Y-axis | mm | 3 axis: 1850 | ||
| 4 axis: 1400 | ||||
| Z-axis | mm | 530 | ||
| A-axis | / | ±185° | ||
| C-axis | / | ±320° | ||
| Spindle | Type | / | Motorized | |
| Max. speed | rpm | 24000 | ||
| Taper | / | HSK A63 | ||
| Feedrates | 3 axis screw | Rack and pinion | ||
| Rapid on X/Y/Z | m/min | 42/48/48 | 60/60/48 | |
| X/Y/Z Cutting Feed Rate | m/min | 20 | 15 | |
| Tool Magazine | Type | / | Umbrella type | |
| Capacity | pcs. | 24 | ||
| Tool-to-tool time | sec | 2 | ||
| Max. tool diameters/length/weigth | φ80mm/280mm/8kg | |||
| Dimension | Machine Height | mm | 3200 | |
| Covering Area | mm | 7100*4100 | ||
| Machine Weight | t | 15 | ||
